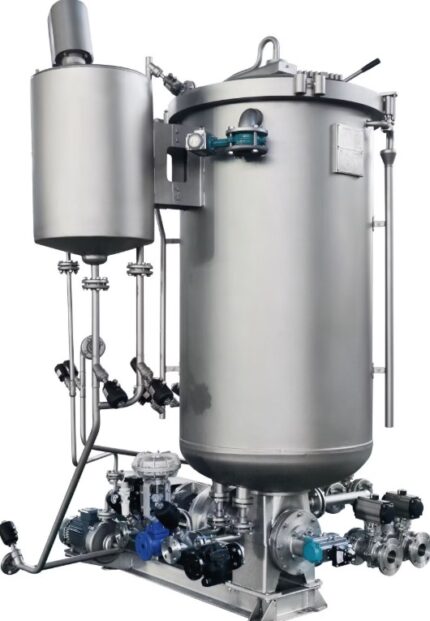

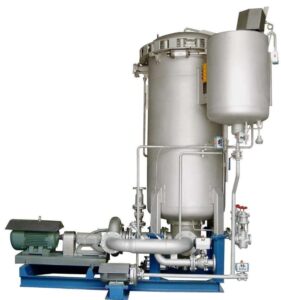

    Sample Cone Yarn Dyeing Machine
    Sample Cone Yarn Dyeing Machine

    Sample Cone Yarn Dyeing Machine



    A Sample Cone Yarn Dyeing Machine is a lab-scale dyeing unit designed for dyeing small batches of yarn wound on cones. It simulates the bulk cone dyeing process, allowing testing of dye formulations, shade matching, and process development before large-scale production.



    Purpose Sample Cone Yarn Dyeing Machine:

    To dye yarn cones under controlled conditions using a small quantity of dyes, water, and chemicals.



    Working Principle Sample Cone Yarn Dyeing Machine:

    Yarn cones are mounted on dyeing spindles.

    The dye liquor is circulated through the yarn from inside (inward flow) or outside (outward flow), ensuring uniform penetration.

    Temperature, pressure, and time are controlled digitally.



    Applications of Sample Cone Yarn Dyeing Machine:

    Lab trials in dye houses

    R&D in dye and chemical manufacturing

    Shade and recipe matching

    Process optimization before bulk production



    Benefits of Sample Cone Yarn Dyeing Machine:

    Cost-Effective Testing – Uses minimal dye, water, and energy for trial batches.

    Accurate Shade Development – Matches production dyeing conditions for reliable color matching.

    Quick Recipe Validation – Fast testing of dyeing recipes before bulk production.

    Time Saving – Rapid cycle time helps speed up R&D and approvals.



    Versatile Applications – Suitable for different yarn types: cotton, polyester, blends, etc.

    Improved Quality Control – Identifies dyeing issues early in lab conditions.



    Features of Sample Cone Yarn Dyeing Machine:

    Compact Design – Lab-friendly, space-saving build.

    Digital Controller – Precise control of temperature, time, and pressure.

    Reversible Flow System – Ensures uniform dyeing by alternating liquor flow.

    Stainless Steel Construction – Durable and corrosion-resistant.

    Pressure & Temperature Safety Devices – For safe high-temperature operations.

    Easy Loading & Unloading – Designed for quick cone placement and removal.



    How to Use Sample Cone Yarn Dyeing Machine:

    Prepare the Yarn – Wind yarn uniformly onto dye able cones (perforated cones preferred).

    Load the Machine – Mount the cones on dyeing spindles and secure the lid properly.

    Add Dye Liquor – Fill the tank with water, dye, auxiliaries, and chemicals based on the recipe.

    Set Parameters – Use the digital controller to set: – Dyeing temperature – Holding time – Heating rate   – Flow direction (inward/outward)



    Start Dyeing Cycle – Begin the process; the machine will heat and circulate dye liquor.

    Monitor the Process – Watch for pressure, temperature, and flow direction changes if applicable.

    Cool Down & Drain – After dyeing, allow the machine to cool. Drain the bath and rinse the yarn.

    Unload and Dry – Remove the cones carefully and dry them using a hydro extractor or dryer.



    Safety Tips for Sample Cone Yarn Dyeing Machine:

    Use Heat-Resistant Gloves – Always wear gloves when handling hot parts or dye liquor.

    Secure the Lid properly – Ensure the lid is tightly closed before starting to avoid leaks under pressure.

    Avoid Overloading – Do not exceed the recommended cone or liquor load to prevent uneven dyeing or damage.



    Stay Clear During Operation – Keep hands and tools away from moving or hot parts while in use.

    Ventilation – Operate in a well-ventilated area to avoid inhaling steam or fumes.

    Emergency Stop – Know the location and function of the emergency stop button.



    Basic Maintenance Checklist:

    Daily:

    [ ] Clean machine interior and remove dye residue

    [ ] Check for any leaks or unusual noises

    [ ] Rinse pump and pipes with clean water



    Weekly:

    [ ] Inspect gaskets and lid seals for wear

    [ ] Check electrical connections and display panel

    [ ] Clean and lubricate valve mechanisms



    Monthly:

    [ ] Test temperature and pressure sensors

    [ ] Inspect flow direction system for proper switching

    [ ] Calibrate temperature control if needed





    Sample Cone Yarn Dyeing Machine – Maintenance & Safety Checklist

    Daily Maintenance:

    ☐ Clean dyeing vessel and spindles

    ☐ Rinse piping and pump with clean water

    ☐ Check for leaks, noises, or unusual vibrations



    Weekly Maintenance:

    ☐ Inspect lid gasket and seals

    ☐ Clean valves and filter (if present)

    ☐ Check control panel buttons and display

    ☐ Tighten any loose screws or fittings

    Monthly Maintenance:

    ☐ Test and calibrate temperature & pressure sensors

    ☐ Inspect and clean reversible flow system

    ☐ Check motor and pump for overheating or wear



    Safety Checklist:

    ☐ Wear heat-resistant gloves & protective eyewear

    ☐ Secure lid tightly before starting

    ☐ Do not exceed load capacity

    ☐ Keep area ventilated during operation

    ☐ Know emergency stop location

    ☐ Let machine cool before cleaning or unloading







    TECHNICAL DATA OF THE MACHINE

    • Computer system: Foshan HuaGao Chinese English computer, equipped with LG PLC.
    • Electromagnetic valve: Ningbo Jiaerling
    • Frequency converter: Use Made in China frequency converters.
    • Pump: self-made high head and large flow centrifugal water pump.
    • Main pump motor: Anhui Wannan Motor.



    • Master cylinder liquid level: Use 4-20mA analog signal output.
    • Level of deputy temporary worker: use foam water level gauge. (American Mike)
    • Temperature detection and display: digital temperature display instrument, dual temperature measuring probes.
    • The safety system has a triple cylinder head safety interlock mechanism, and the main cylinder is equipped with a stainless
    • steel safety valve.
    • Heat exchanger: external spacer heating.
    • Feeding system: Quantitative feeding based on the process curve.
    • Circulation system: The main pump flows internally and externally, which is automatically controlled by a computer or manually controlled by a relay.



    • Valves: Y valves are used for heating, stainless steel Y valves are used for single inlet and single row, and other Y valves are produced by joint ventures.
    • Temperature control: on-off temperature control, controlled by a computer, with automatic heating, cooling, and insulation functions.
    • Dyeing method: air cushion type.
    • Opening method: manual opening.
    • Surface treatment: polishing inside and outside the cylinder.
    • Cage: Each dyeing machine is equipped with butterfly blades and self-locking locks.
    • Body plate: high-quality stainless steel. (S31603)
    • Bath ratio: 1:5-1:6



    • Chemical material system: including heating and water adding functions, including overflow type salt melting device.
    • Overflow cleaning: The cleaning port is installed on the upper part of the cylinder port, and the bottom of the cylinder is filled with water, while the cylinder is drained for easy cleaning.
    • Commutation method: Novel “U” type commutation.
    • Random accessories: Each model comes with one set of mechanical seals, pot mouth rings, and reversing seals for the main and auxiliary pumps.

      Sample Cone Yarn Dyeing Machine

      Sample Cone Yarn Dyeing Machine

    Category: Tags: , , , , , Brand: ,
    Shipping & Delivery

    Related products

    Digital Yarn Twist Tester
    Digital Yarn Twist Tester

    Digital Yarn Twist Tester

    $0.00

    Digital Yarn Twist Tester

    Digital Yarn Twist Tester

    Digital Yarn Twist Tester

      A Digital Yarn Twist Tester is a laboratory device used to measure the number of twists (turns) per unit length in a yarn. It’s crucial for evaluating yarn quality, strength, elasticity, and uniformity. The digital version offers precise, automated readings for both S-twist and Z-twist yarns.   Purpose Digital Yarn Twist Tester: To determine twist per inch (TPI) or twist per meter (TPM) in single and plied yarns using direct untwist or untwist-retwist methods.   Applications Digital Yarn Twist Tester: Quality control in spinning mills Yarn standard testing (cotton, polyester, blends) R&D in textile manufacturing   Working Principle Digital Yarn Twist Tester: One end of the yarn is clamped, and the other is rotated to remove or measure twists. The tester counts and displays twist digitally based on length and rotation.   Benefits of Digital Yarn Twist Tester: High Accuracy - Digital readout ensures precise twist measurements. Quick Testing - Faster than manual methods, increasing lab efficiency. Versatile Application - Suitable for single, doubled, or plied yarns. Reduces Human Error - Automated counting improves repeatability and consistency.   Supports Both S & Z Twist - Measures both twist directions accurately. User-Friendly Operation - Intuitive controls and clear display simplify use.   Features of Digital Yarn Twist Tester: Digital Display - Shows real-time twist count and length. Motorized Rotation- Smooth, adjustable rotation speed for controlled untwisting. Dual Clamp System - Holds yarn securely to prevent slippage. Length Measurement Scale - Built-in ruler or encoder for precise yarn length setup.   Auto Stop Function - Automatically stops when yarn is fully untwisted. Selectable Units - Twist readings available in TPI or TPM.   How to Use Digital Yarn Twist Tester: Prepare the Yarn Sample - Cut a yarn length (e.g., 250 mm or 10 inches) as per testing standard. - Make sure it’s free from knots or damage. Mount the Yarn   - Fix one end in the stationary clamp and the other in the rotating clamp. - Ensure the yarn is straight and under slight tension.   Set the Gauge Length - Adjust the length scale or input it digitally, depending on the machine. Select Twist Direction - Choose S or Z direction based on the yarn's twist. Start the Test - Activate the motor to untwist (or untwist-retwist, if applicable).   - The display shows the number of rotations. Read the Twist Value  - The twist (TPI/TPM) appears automatically based on the set length.   Stop and Unload - Once reading is complete, stop the machine and remove the yarn. Record the Result - Note the reading for documentation or further analysis.   Maintenance Tips for Digital Yarn Twist Tester: Daily: ☐ Wipe down the machine and clamps to remove dust or fibers ☐ Check for yarn residue on rotating parts ☐ Ensure display and buttons are responsive   Weekly: ☐ Lubricate rotating spindle lightly (if required) ☐ Inspect clamps for wear or misalignment ☐ Test motor rotation for smooth operation ☐ Check twist direction selector switch   Monthly: ☐ Calibrate digital display if twist readings drift ☐ Inspect electrical wiring and connectors ☐ Tighten any loose screws or panel parts     Safety Tips: Avoid Loose Clothing: Prevent getting caught in the rotating spindle Use Proper Yarn Tension: Overstretching may snap the yarn or damage clamps Handle With Care: Avoid rough handling of the digital panel or twist arm Power Off When Not in Use: Prevents accidental operation Follow Manual: Refer to user guide for specific calibration or cleaning procedures   Digital Yarn Twist Tester – Maintenance & Safety Checklist   Daily Maintenance: ☐ Clean clamps and body surface ☐ Remove lint or yarn fragments ☐ Verify display & control buttons function properly   Weekly Maintenance: ☐ Lightly lubricate spindle if required ☐ Inspect clamp alignment and grip ☐ Test motor for smooth, silent operation ☐ Check twist direction switch   Monthly Maintenance: ☐ Calibrate twist reading accuracy ☐ Inspect cables and connectors ☐ Tighten loose hardware ☐ Run full test to ensure system performance   Safety Checklist: ☐ Keep hands clear of rotating parts during testing ☐ Avoid loose clothing or jewelry ☐ Do not overstretch or over tension yarn ☐ Power off when cleaning or not in use ☐ Follow the machine's manual for calibration and service   Basic Troubleshooting Guide – Digital Yarn Twist Tester   Issue: No Power / Display Not Turning On -  Check power cable and socket -  Inspect fuse or main switch -  Ensure emergency stop isn’t engaged   Issue: Twist Count Seems Inaccurate -  Recalibrate the machine -  Verify yarn length input is correct -  Check for slippage in clamps   Issue: Motor Not Rotating -  Ensure motor switch is ON -  Inspect motor connection and wiring -  Test rotation manually to check for blockage   Issue: Display Freezes or Buttons Unresponsive -  Restart the machine -  Check control panel for dust or moisture -  Contact support if issue persists   Issue: Auto-Stop Not Working -  Ensure length and twist direction are set -  Check sensor alignment or damage -  Reboot and re-run test   Scope of application It is used for testing the twist, twist irregularity and twist shrinkage of all kinds of yarns. [Related standards] GB/T2543.1/2 FZ/T10001 ISO2061 ASTM D1422 JIS L1095 etc.   Technical parameters 1. Work mode:Computer program control, data processing, printout results 2. Test methods: A, Average twisting slip elongation B, Average maximum twisting elongation. C, Direct counting method D, twisting twisting A method E, Twisting twisting B method f and three times twisting twisting method 3. Sample length:10、25、50、100、200、250、500mm 4. Twist test range:1~1998 twist /10cm, 1~1998 twist /m 5. The extent of twist removal:Maximum 50mm 6. Maximum twist measurement.20mm 7. Speed:600～3000r/min 8. Pre tension:0.5～171.5cN
    Digital Yarn Twist Tester

    Digital Yarn Twist Tester

    9. Size:920×170×220mm 10. Power supply:Ac220V 50Hz 25W 11. Weight:16kg
    Add to cart
    Quick view
    Electronic Wrap Reel
    Electronic Wrap Reel

    Electronic wrap reel

    $0.00
    Electronic Wrap Reel
    Electronic Wrap Reel

    Electronic Wrap Reel

      An Electronic Wrap Reel is a precision instrument used in textile labs to prepare yarn hanks of a fixed length (usually 1 yard per wrap) for testing purposes like count, strength, and appearance. It automates the reeling process using an electronic counter and motor control.   Purpose Electronic Wrap Reel: To wind yarn into standard hanks (skeins) for count determination, strength tests, and dye testing.   Key Functions of Electronic Wrap Reel: Measures yarn length by controlled wraps Ensures uniform tension and hank size Allows setting of specific wrap counts   Applications Electronic Wrap Reel: Yarn count analysis (Tex, Ne, Denier) Strength testing Yarn appearance grading Dye lab sample preparation   Benefits of Electronic Wrap Reel: Accurate Length Measurement- Ensures precise yarn length by counting wraps electronically. Consistent Hank Size - Produces uniform skeins for reliable testing. Time-Saving- Automates the winding process, reducing manual effort. Adjustable Settings - Allows customization of wrap count for different test standards.   Reduced Human Error - Electronic counting minimizes mistakes in yarn preparation. Improved Testing Reliability - Standardized samples enhance accuracy of subsequent tests.   Features of Electronic Wrap Reel: Digital Wrap Counter - Clear display showing the number of wraps completed. Variable Speed Control - Adjustable motor speed for delicate or coarse yarns. Uniform Tension System - Maintains consistent tension to avoid yarn damage. Auto Stop Function - Stops automatically when preset wrap count is reached.   Compact & Sturdy Design - Stable base with durable materials for long service life. Easy Threading Path - Designed for quick and hassle-free yarn threading.   How to Use Electronic Wrap Reel: Set Up the Machine - Place the reel on a stable surface and connect to power. Prepare the Yarn - Secure the yarn end on the reel’s hook or clamp. Set Wrap Count - Use the control panel to enter the desired number of wraps. Thread the Yarn - Guide the yarn through the tensioner and winding arm as per instructions.   Start the Machine - Press the start button; the reel will rotate and wind the yarn. Monitor Process - Watch the digital counter to ensure accurate wraps. Automatic Stop - The machine will stop once the set wrap count is reached. Remove Yarn Hank - Carefully take off the finished hank from the reel. Power Off & Clean - Turn off the machine and clean any yarn residues.   Safety Tips for Electronic Wrap Reel: Keep Hands Clear - Avoid touching moving parts during operation to prevent injury. Use Proper Clothing - Avoid loose sleeves or jewelry that can get caught in the machine. Power Off Before Threading - Always turn off the machine when threading or adjusting yarn. Check for Damage - Inspect electrical cords and machine parts regularly for wear or damage. Operate on Stable Surface - Place the machine on a flat, secure table to avoid tipping.   Maintenance Tips: Regular Cleaning - Remove lint and dust from the tensioner and winding area. Check Tension System - Ensure tensioners are functioning smoothly and adjust if needed. Inspect Electronic Components - Check the display and control panel for proper operation. Lubricate Moving Parts - Apply light oil to bearings and moving joints as per manual. Store Properly - When not in use, cover the machine to protect it from dust.   Daily Maintenance Checklist for Electronic Wrap Reel: [ ] Wipe dust and lint from winding area and tensioner [ ] Check yarn path for smooth threading [ ] Inspect digital display and buttons for responsiveness [ ] Ensure power cord and plug are intact   Weekly Maintenance Checklist: [ ] Lubricate bearings and moving parts lightly [ ] Tighten any loose screws or fasteners [ ] Test auto-stop and wrap count accuracy [ ] Clean electronic components gently with a dry cloth   Monthly Maintenance Checklist: [ ] Inspect tension system for wear or damage [ ] Calibrate wrap counter if readings seem off [ ] Check motor performance and listen for unusual noise [ ] Verify safety covers and guards are secure     Electronic Wrap Reel Maintenance Checklist Daily: Wipe dust/lint from winding area & tensioner Check yarn path for smooth threading Inspect digital display & buttons, Verify power cord integrity Weekly: Lubricate bearings & moving parts Tighten loose screws Test auto-stop & wrap count accuracy Clean electronic components gently   Monthly: Inspect tension system for wear Calibrate wrap counter if needed Check motor noise & performance Ensure safety covers are secure   Here’s the basic Yarn Count Calculation formula using the Electronic Wrap Reel: Yarn Count (Ne) = (Number of wraps × Length per wrap in yards) / (Weight of yarn in grams × Conversion factor) Usually: Length per wrap = 1 yard (standard) Conversion factor depends on system used (e.g., for English cotton count, factor = 1.69)   Example for English Cotton Count (Ne): Ne = (Number of wraps × 1) / (Weight in grams × 1.69) Where: Number of wraps = wraps on reel Weight in grams = weight of the hank after winding   Scope of application It is used to accurately measure the length of the yarn, for the determination of the linear density or count of the textile yarn and the yarn strength test. [Related Standards] GB/T4743 GB/T14343 GB/T6838 ISO2060 ASTM D1907 etc. [Instrument characteristics] 1. Synchronous toothed belts are directly driven without slipping. 2. The photoelectric coupling tube counts. 3. Imported electronic tension sensor, dynamic display of winding tension, no additional tension shock [YG(B)086A] [Technical parameter] 1. Can test yarn fray at the same time: 6 frays 2. Yarn fray spacing: 60mm 3. Circumference of yarn frame: (1000±1)mm 4. Yarn frame speed: (20～220)r/min (stepless speed regulation) 5. Number of yarn loops: 1～9999 6. Yarn traverse reciprocating width: (35±0.5)mm 7. Tension range of single spinning yarn: (0～100)cN±1cN 8. Power supply: AC220V±10% 50Hz 100W 9. Dimensions: (780×660×480)mm 10. Weight: 55kg
    Electronic Wrap Reel

    Electronic Wrap Reel

    Add to cart
    Quick view
    Thread Cone Winding Machine
    Thread Cone Winding Machine

    Thread Cone Winding Machine

    $0.00
    Thread Cone Winding Machine
    Thread Cone Winding Machine

    Thread Cone Winding Machine

      A Thread Cone Winding Machine is a textile winding device used to wind sewing thread or yarn uniformly onto cones. It prepares thread packages for use in sewing, embroidery, or further textile processing.   Purpose of Thread Cone Winding Machine: - Converts yarn from hanks, bobbins, or spools into cone form for better handling and usage in production.   Key Functions of Thread Cone Winding Machine: - Winding with controlled tension and speed - Forming cones with precise shape and density - Ensuring smooth yarn feeding without breaks   Applications of Thread Cone Winding Machine: - Sewing thread manufacturing - Embroidery thread preparation - Yarn rewinding in textile mills - Packaging of dyed yarns   Benefits of Thread Cone Winding Machine:
    1. Efficient Yarn Packaging - Speeds up the process of preparing thread for sewing or embroidery.
    2. Uniform Cone Formation - Ensures consistent cone shape and tension for smooth downstream use.
    3. Reduces Thread Breakage - Controlled tension and smooth guiding minimize thread damage.
    4. Time & Labor saving- Automates winding, reducing manual effort and increasing productivity.

    1. Improves Thread Quality - Removes loose fibers and irregularities during winding.
    2. Supports Multiple Yarn Types - Compatible with cotton, polyester, silk, and blended threads.
      Features of Thread Cone Winding Machine:
    1. Adjustable Winding Speed - Variable speed control for different thread types.
    2. Thread Tension Control System - Maintains consistent tension for smooth winding.
    3. Auto Stop Mechanism - Stops automatically when cone is full or thread breaks.
    4. Multiple Spindle Options - Single or multi-spindle designs for higher output.

    1. Traverse Mechanism - Ensures even layering of thread across the cone.
    2. Compact & Durable Build - Space-saving, long-lasting structure for industrial use.
      How to Use Thread Cone Winding Machine:
    1. Set Up the Machine - Turn on the power and check all safety covers and switches.
    2. Load the Yarn Source - Place the yarn hank, bobbin, or spool on the supply holder.
    3. Mount the Empty Cone - Fix an empty cone securely onto the spindle.

    1. Thread the Machine - Guide the thread through tension disks, guides, and eyelets as per the machine path.
    2. Adjust Settings - Set the desired winding speed and tension based on thread type.
    3. Start the Machine - Press the start button; the thread begins winding onto the cone.
    4. Monitor the Process - Ensure even winding and tension; adjust traverse if needed.

    1. Auto-Stop or Manual Stop - The machine will stop automatically if the cone is full or thread breaks.
    - You can also stop it manually once the cone reaches the desired size.
    1. Remove the Cone - Carefully remove the finished cone and load a new one if needed.
    2. Clean and Shut Down - Turn off the machine and clean any thread residue after use.
      Safety Tips for Thread Cone Winding Machine:
    1. Always Use Safety Guards - Ensure all protective covers are in place before operation.
    2. Avoid Loose Clothing - Prevent thread or moving parts from catching clothes or jewelry.
    3. Power Off Before Maintenance - Always turn off the machine before threading, cleaning, or adjustments.

    1. Check Thread Path - Use correct threading to prevent sudden breakage or tangling.
    2. Don’t Overload the Cone - Stop the machine once the cone is adequately filled to avoid jamming.
    3. Keep Area Clean - Remove lint and thread waste regularly to prevent fire hazards or machine faults.
      Basic Maintenance Steps:
    1. Daily Cleaning - Wipe dust and thread particles from guides, spindles, and tension parts.
    2. Lubrication - Oil moving parts (as per manual) weekly to reduce wear.
    3. Check Tension Settings - Inspect and calibrate tension mechanisms for consistent winding.
    4. Inspect Belts and Motors - Look for wear or looseness in drive belts and check motor sound regularly.
    5. Replace Worn Parts Promptly - Replace traverse mechanisms, springs, or tension disks if worn out.
        Lab Winding Machine is used in lab spinning procedure and lab cop dyeing. It is suitable for education, R&D, widely used in lab.Follows are features of lab cone winder: It can wind the spun yarn from bobbin plastic tube to cone tube. It is suitable for soft winding & hard winding. It supports uniform control for all the spindles and individual control for each spindle. The uniform control is through touch panel and the individual control is through microcontroller. Driven by brushless DC motor; The winding speed can be adjusted; Each spindle has auto-stop function when yarn breaks; Mini-type design, easy to clean, set and maintain.   Application Of Lab Cone Winding Machine Lab cone winding machine is used to twine yarn to the line pipe. It is very helpful for education and research institute etc. Particularly, for yarn dyeing, if the bobbin yarn is purchased from market, customer must use loose winding machine to wind the yarn. After the yarn become loose, it can be used for dyeing; after dyeing, if customer want to sell the bobbin yarn to market, tight winding machine must be used to make the bobbin yarn tight, then it can be sold to market. Our lab cone winding machine with normal four spindles having two positions for loose winding and the other two positions for tight winding is essential if customer need to wind the yarn.
    Thread Cone Winding Machine

    Thread Cone Winding Machine

    If you need more information about Cotton Cone Winding Machine ,please contact us.
    Add to cart
    Quick view

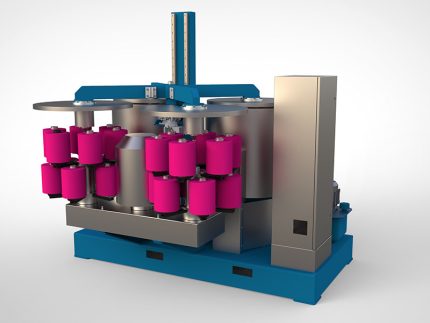

    Automatic Bobbin Hydro extractor
    Automatic Bobbin Hydro extractor

    Automatic Bobbin Hydro extractor

    $0.00
    Automatic Bobbin Hydro extractor
    Automatic Bobbin Hydro extractor

    Automatic Bobbin Hydro extractor

      An Automatic Bobbin Hydro extractor is a high-speed centrifugal machine used in textile dyeing units to remove excess water from yarn bobbins after dyeing. It operates by spinning the bobbins at high speed, extracting water via centrifugal force, significantly reducing drying time.   Purpose of Automatic Bobbin Hydro extractor: To dewater dyed yarn bobbins quickly and efficiently before final drying.   Applications of Automatic Bobbin Hydro extractor: Textile dye houses Cone and bobbin dyeing units Pre-drying in yarn processing   Working Principle of Automatic Bobbin Hydro extractor: Dyed bobbins are loaded into perforated baskets. The machine spins rapidly, forcing water outwards and draining it away. Automatic controls manage cycle time, speed, and safety functions.   Benefits of Automatic Bobbin Hydro extractor: Fast Water Removal - Greatly reduces moisture content before drying, saving energy. Gentle on Yarn - Designed to avoid damage or deformation of soft dyed bobbins. Labor-Saving Operation - Fully automatic with programmable cycles for ease of use. Shortens Drying Time - Cuts drying time in hot air or RF dryers significantly.   Improves Production Efficiency - Speeds up workflow in dyeing and finishing processes. Reduces Manual Handling - Often includes hydraulic or pneumatic lifting for easy bobbin loading/unloading.   Features of Automatic Bobbin Hydro extractor: High-Speed Stainless Steel Drum - Rust-resistant and built for stable, high-speed spinning. PLC or Digital Controller - For setting speed, time, and safety interlocks. Soft Start & Stop Function - Protects yarn and machine from sudden movement or shock. Automatic Lid Locking System - Ensures safety during operation.   Efficient Drainage System - Quickly removes expelled water to drain line. Vibration-Free Design - Balanced system reduces noise and mechanical wear.   How to Use Automatic Bobbin Hydro extractor: Prepare Bobbins - Ensure dyed bobbins are properly packed and free of loose ends. Load the Machine - Open the lid and place bobbins evenly inside the perforated drum.     - Avoid overloading to maintain balance during spinning.   Close and Lock Lid - Securely close the lid; the automatic locking system will engage.   Set Parameters- Use the control panel to set spinning speed and time according to yarn type. Start the Cycle - Press start; the machine will gradually accelerate to the preset speed. Monitor Operation - The machine runs, extracting water by centrifugal force.   Cycle Completion - After the set time, the machine slows down and stops automatically. Unload Bobbins - Open the lid once unlocked and carefully remove the hydro-extracted bobbins. Clean the Machine - Remove any residual water or lint from the drum after use.   Maintenance Tips for Automatic Bobbin Hydro extractor: Daily: ☐ Clean the drum and interior to remove lint and water residues ☐ Check lid locking mechanism for smooth operation ☐ Inspect drain pipes for clogging   Weekly: ☐ Lubricate moving parts as per manufacturer instructions ☐ Inspect belt or motor coupling for wear ☐ Test safety interlocks and emergency stop   Monthly: ☐ Check electrical wiring and control panel for damage ☐ Balance drum if vibrations are noticeable ☐ Tighten all bolts and fasteners   Safety Tips: ☐ Always ensure the lid is properly locked before starting ☐ Do not overload the drum to avoid imbalance and damage ☐ Keep hands and loose clothing clear of moving parts ☐ Use emergency stop in case of abnormal noise or vibration ☐ Turn off power before cleaning or maintenance   Automatic Bobbin Hydro extractor Maintenance Checklist Daily: ☐ Clean drum and interior from lint & water ☐ Check lid locking mechanism ☐ Inspect drain pipes for clogging   Weekly: ☐ Lubricate moving parts as per manual ☐ Inspect belt/motor coupling for wear ☐ Test safety interlocks & emergency stop   Monthly: ☐ Check electrical wiring and control panel ☐ Balance drum if vibration occurs ☐ Tighten bolts and fasteners   Safety Checklist ☐ Confirm lid is locked before operation ☐ Avoid overloading drum ☐ Keep hands & loose clothing away from moving parts ☐ Use emergency stop if needed ☐ Power off before cleaning or maintenance   TECHNICAL DATA OF THE MACHINE
    • Computer system: Foshan HuaGao Chinese English computer, equipped with LG PLC.
    • Electromagnetic valve: Ningbo Jiaerling
    • Frequency converter: Use Made in China frequency converters.
    • Pump: self-made high head and large flow centrifugal water pump.
    • Main pump motor: Anhui Wannan Motor.

    • Master cylinder liquid level: Use 4-20mA analog signal output.
    • Level of deputy temporary worker: use foam water level gauge. (American Mike)
    • Temperature detection and display: digital temperature display instrument, dual temperature measuring probes.
    • The safety system has a triple cylinder head safety interlock mechanism, and the main cylinder is equipped with a stainless
    • steel safety valve.
    • Heat exchanger: external spacer heating.
    • Feeding system: Quantitative feeding based on the process curve.

    • Circulation system: The main pump flows internally and externally, which is automatically controlled by a computer or manually controlled by a relay.
    • Valves: Y valves are used for heating, stainless steel Y valves are used for single inlet and single row, and other Y valves are produced by joint ventures.
    • Temperature control: on-off temperature control, controlled by a computer, with automatic heating, cooling, and insulation functions.
    • Dyeing method: air cushion type.
    • Opening method: manual opening.
    • Surface treatment: polishing inside and outside the cylinder.
    • Cage: Each dyeing machine is equipped with butterfly blades and self-locking locks.

    • Body plate: high-quality stainless steel. (S31603)
    • Bath ratio: 1:5-1:6
    • Chemical material system: including heating and water adding functions, including overflow type salt melting device.
    • Overflow cleaning: The cleaning port is installed on the upper part of the cylinder port, and the bottom of the cylinder is filled with water, while the cylinder is drained for easy cleaning.
    • Commutation method: Novel "U" type commutation.
    • Random accessories: Each model comes with one set of mechanical seals, pot mouth rings, and reversing seals for the main and auxiliary pumps.
      Automatic Bobbin Hydro extractor

      Automatic Bobbin Hydro extractor

    Add to cart
    Quick view
    High Speed Soft Cone Winding Machine latest 2026
    High Speed Hard Winding Machine

    High Speed Soft Winding Machine

    $0.00

    High Speed Soft Winding Machine latest 2026

    High Speed Soft Cone Winding Machine latest 2026

    High Speed Soft Cone Winding Machine latest 2026

    Brand: FEIHU Model: FHCT-S / As Per Machine Origin: China Machine Type: Cone to Cone Winding Machine Application: Before Dyeing Yarn Preparation

    Product Introduction

    The High Speed Soft  Winding Machine latest 2026 is a high-efficiency industrial yarn winding machine specially designed for preparing yarn cones before the dyeing process. It is suitable for winding a wide range of yarns, including Cotton, Wool, Acrylic, Polyester and other commonly used textile yarns.The machine is designed to produce well-formed and uniform soft yarn packages, helping improve the quality and consistency of the subsequent dyeing process. With a winding speed of 100–1000 m/min, the machine provides high productivity while allowing the operator to adjust the process speed according to yarn quality and feeding conditions. The High Speed Soft Cone Winding Machine latest 2026 also helps reduce manual workload and improve operational efficiency in textile yarn preparation. Its integrated yarn monitoring and control functions make it suitable for modern spinning, dyeing and textile processing facilities.

    Scope of Application

    The High Speed Soft Cone Winding Machine latest 2026 is mainly used for before-dyeing yarn preparation. It can be used in textile mills, yarn dyeing factories, spinning mills and other facilities where yarn needs to be prepared in soft cone form before dyeing. It is suitable for:
    • Cotton yarn
    • Wool yarn
    • Acrylic yarn
    • Polyester yarn
    • Blended yarn
    • Other suitable textile yarns
    The machine is particularly useful where consistent package formation, controlled yarn tension and efficient production are required.

    Standard Features

    • High-speed winding operation
    • 96 spindles per set
    • 12 spindles per section, double side
    • Cone-to-cone winding system
    • Adjustable winding speed from 100–1000 m/min
    • Suitable for different types of textile yarn
    • Individual 90W DC motor for each spindle
    • Meter counting system
    • Automatic yarn break sensor
    • Adjustable speed control
    • Yarn tension control device
    • Anti-stack device
    • Centralized control box
    • Touch-screen control system
    • Voltage regulator
    • Complete with standard accessories
    • Designed for efficient and uniform yarn package formation

    Technical Specification of High Speed Soft Winding Machine latest 2026

    Parameter Specification
    Machine Name High Speed Soft Cone Winding Machine
    Brand FEIHU
    Model FHCT-S / As Per Machine
    Origin China
    Machine Type Cone to Cone
    Application Before Dyeing Yarn Preparation
    Spindle Number 96 Spindles/Set
    Spindle Arrangement 12 Spindles/Section, Double Side
    Winding Speed 100–1000 m/min
    Motor Power 90W DC Motor / Spindle
    Yarn Tension Adjustable
    Meter Counting Available
    Yarn Break Sensor Available
    Speed Control Adjustable
    Anti-Stack Device Available
    Control System Centralized Control Box
    Display Touch Screen
    Voltage Regulation Available
    Standard Accessories Complete Set
    Dimension L 18160 × W 1060 × H 1560 mm / As Per Machine
    Net Weight As Per Machine

    Winding Speed

    The FEIHU FHCT-S provides a winding speed range of 100–1000 m/min. The actual process speed can be adjusted according to the quality of yarn, yarn type, feeding condition and required package formation. This adjustable speed function allows users to select an appropriate operating condition for different yarn materials and production requirements.

    Spindle Configuration

    The High Speed Soft  Winding Machine latest 2026 is configured with 96 spindles per set, arranged as 12 spindles per section with double-side construction. This configuration allows the machine to achieve high production capacity while maintaining an organized and efficient winding arrangement. The multi-spindle design makes the FHCT-S suitable for industrial-scale yarn preparation where continuous and reliable production is required.

    Individual Spindle Motor

    Each spindle is equipped with a 90W DC motor, providing independent and efficient spindle operation. The individual motor arrangement supports stable winding performance and allows the machine to operate effectively across its specified speed range.

    Yarn Tension Control

    Consistent yarn tension is an important requirement for producing a properly formed yarn package. The FHCT-S is equipped with a yarn tension device to help maintain controlled yarn tension during the winding process. Proper tension control helps produce more uniform packages and supports improved performance during subsequent textile processing and dyeing operations.

    Meter Counting System

    The integrated meter counting system enables operators to monitor the winding length during operation. This feature provides convenient production monitoring and helps maintain consistency between yarn packages.

    Yarn Break Sensor

    The machine is equipped with a yarn break sensor for detecting yarn breakage during winding. This helps the operator identify interruptions quickly and improves the overall efficiency of the winding operation.

    Anti-Stack Device

    The built-in anti-stack device is designed to support proper yarn distribution during winding. It helps reduce concentrated yarn build-up and contributes to better package formation.

    Centralized Touch-Screen Control

    The FEIHU FHCT-S features a centralized control box with touch-screen operation, providing convenient access to machine operating functions. The centralized control arrangement makes it easier for operators to monitor and control the winding process from a single operating point.

    Voltage Regulator

    A voltage regulator is included as part of the standard machine configuration. It supports stable electrical operation and helps protect the machine's control system under suitable operating conditions.

    Package Formation

    One of the main purposes of the High Speed Soft Winding Machine latest 2026 is to produce a well-formed soft yarn package suitable for subsequent dyeing operations. Proper package formation is important in yarn dyeing because it supports consistent penetration and circulation of dye liquor through the yarn package. The machine's controlled winding speed, yarn tension system and anti-stack arrangement work together to support uniform package preparation.

    Applications of High Speed Soft Winding Machine latest 2026

    The High Speed Soft Winding Machine latest 2026 can be used in:
    • Yarn Dyeing Factories
    • Textile Manufacturing Plants
    • Spinning Mills
    • Knitting Industries
    • Garment Textile Production
    • Cotton Yarn Processing
    • Wool Yarn Processing
    • Acrylic Yarn Processing
    • Polyester Yarn Processing
    • Blended Yarn Processing
    • Before-Dyeing Yarn Preparation

    Suitable Yarn Types

    The machine is designed for winding various textile yarns, including: Cotton Yarn: Suitable for preparing cotton yarn packages before dyeing. Wool Yarn: Suitable for appropriate wool yarn winding applications. Acrylic Yarn: Can be used for preparing acrylic yarn for subsequent processing. Polyester Yarn: Suitable for polyester yarn package preparation. Other Textile Yarns: The machine can also be configured for other suitable yarn types according to production requirements.

    Advantages of High Speed Soft Winding Machine latest 2026

    High Production Efficiency

    With up to 96 spindles per set and a winding speed of up to 1000 m/min, the machine is designed for high-volume yarn preparation.

    Uniform Yarn Packages

    Controlled winding parameters and tension management help produce well-formed and consistent soft cones.

    Reduced Labor Intensity

    The multi-spindle configuration and centralized control system reduce manual workload and improve operator efficiency.

    Adjustable Operating Speed

    The winding speed can be adjusted according to yarn quality, yarn type and feeding conditions.

    Improved Process Preparation

    Properly prepared yarn packages can support more consistent performance during subsequent dyeing and textile processing.

    Convenient Operation

    The centralized touch-screen control system provides a convenient interface for machine operation and monitoring.

    Yarn Break Monitoring

    The integrated yarn break sensor helps detect winding interruptions and supports efficient production management.

    Complete Standard Accessories

    The machine is supplied with its standard accessories and essential operating components.

    Why Choose High Speed Soft Winding Machine latest 2026

    The High Speed Soft Winding Machine latest2026 is designed for textile manufacturers looking for an efficient and reliable solution for before-dyeing yarn preparation. Its combination of 96-spindle capacity, adjustable 100–1000 m/min winding speed, individual DC motors, yarn tension control, meter counting, yarn break sensing, anti-stack technology and centralized touch-screen control makes it suitable for modern textile production environments. The machine can help textile factories improve yarn preparation efficiency, reduce manual workload and achieve more consistent soft cone packages for subsequent dyeing operations.

    Standard Accessories

    The machine is supplied with complete standard accessories required for normal operation, subject to the final machine configuration and supplier specification.

    Machine Dimension

    Length: 18160 mm Width: 1060 mm Height: 1560 mm Dimension: As Per Machine Net Weight: As Per Machine

    Product Summary of High Speed Soft Winding Machine latest 2026

    The High Speed Soft Winding Machine latest 2026 is an industrial cone-to-cone yarn winding machine designed primarily for before-dyeing preparation. With 96 spindles/set, 12 spindles per section, double-side configuration, 100–1000 m/min winding speed and 90W DC motor per spindle, it provides an efficient solution for preparing cotton, wool, acrylic, polyester and other textile yarns. Its meter counter, yarn break sensor, adjustable speed, yarn tension device, anti-stack device, centralized touch-screen control box and voltage regulator provide convenient and controlled winding operation for modern textile processing facilities.
    Add to cart
    Quick view
    VeriVide Original D65 Tube Light Artificial Daylight 6500K
    Color Matching Cabinet -light Box

    VeriVide Original D65 Tube light

    , , ,
    $0.00

    VeriVide Original D65 Tube Light – Artificial Daylight

    VeriVide Original D65 Tube Light Artificial Daylight 6500K

    VeriVide Original D65 Artificial Daylight Tube Light – 6500K, CRI 98

    Original VeriVide D65 Artificial Daylight Tube Light for Accurate Colour Assessment

    VeriVide Original D65 Tube Light – Artificial Daylight is a professional standardized daylight light source designed for accurate and consistent visual colour assessment. With a correlated colour temperature of 6500K and high CRI 98, the VeriVide D65 provides a controlled artificial daylight environment for evaluating colours, shades, textiles, garments, printed materials, plastics, paints, packaging and other products where colour consistency is critical.

    Natural daylight changes according to the time of day, weather, season, geographical location and surrounding conditions. These changes can create differences in visual colour evaluation. A standardized D65 artificial daylight source provides a controlled lighting condition so that colour decisions can be made consistently. VeriVide explains that using the same standardized artificial light source throughout the supply chain helps reduce problems caused by variations in natural daylight.

    The VeriVide Original D65 Artificial Daylight Tube is therefore an important replacement or lighting component for professional colour assessment cabinets, viewing systems and suitable standardized visual inspection environments.

    Product Overview

    Specification Details
    Product Name VeriVide D65 Artificial Daylight Tube Light
    Brand VeriVide
    Light Source D65 Artificial Daylight
    Correlated Colour Temperature 6500K
    Colour Rendering Index CRI 98
    Lamp Type T8
    Available Length 600 mm / 1200 mm / 1500 mm
    Available Power 18W / 36W / 58W
    Application Colour Assessment & Visual Inspection
    Colour Evaluation Standardized Artificial Daylight
    Typical Use Textile, Garments, Printing, Packaging, Paint, Plastic & Manufacturing
    Manufacturer VeriVide
    Product Codes 600D65 / 1200D65 / 1500D65

    Specifications are based on VeriVide's published lamp information. Availability of individual lengths/models should be confirmed at the time of order.

    What is VeriVide D65 Artificial Daylight?

    VeriVide Original D65 Tube light is a standardized daylight illuminant representing daylight with a correlated colour temperature of approximately 6500 Kelvin. VeriVide describes D65 as the international standard measure of daylight based around a mean colour temperature of 6500K.

    The purpose of D65 lighting is not simply to provide a bright white light. Instead, it provides a standardized spectral lighting condition suitable for professional visual colour assessment.

    Two products can sometimes appear to have the same colour under one light source but look different under another. This phenomenon is known as metamerism. For this reason, professional colour assessment requires controlled and standardized illumination. VeriVide specifically highlights the importance of viewing colour samples under standardized lighting conditions to identify colour differences and metameric effects.

    VeriVide Original D65 Tube light is engineered for this type of controlled colour assessment environment.

    Why Choose Original VeriVide D65 Tube Light?

    Colour evaluation is an important part of quality control in many industries. A small difference in colour can result in rejection of fabric, garments, packaging, printed materials or finished products.

    Using ordinary room lighting or an uncontrolled daylight source may produce inconsistent visual results. The VeriVide D65 provides a standardized artificial daylight source designed specifically for professional colour assessment.

    Key advantages include:

    • 6500K standardized D65 daylight
    • High CRI 98
    • Designed for accurate visual colour assessment
    • Consistent lighting conditions
    • Suitable for professional colour matching
    • Helps reduce variations caused by natural daylight
    • Suitable for colour assessment equipment and viewing systems
    • Available in multiple tube lengths
    • Suitable for textile and garment quality control
    • Useful for identifying colour differences and metamerism
    • Original VeriVide replacement lamp

    VeriVide states that its D65 lamp has a CRI of 98, allowing colours to be rendered more accurately than lower-CRI light sources.

    Technical Specifications

    1. Correlated Colour Temperature – 6500K

    VeriVide Original D65 Tube light has a 6500K correlated colour temperature.

    6500K is the defining colour-temperature characteristic of D65 artificial daylight. It produces a cool daylight appearance suitable for professional colour evaluation.

    This is particularly important when colour standards and product samples need to be compared under controlled lighting conditions.

    2. High Colour Rendering Index – CRI 98

    VeriVide Original D65 Tube light is specified with a CRI of 98.

    CRI, or Colour Rendering Index, indicates how accurately a light source renders colours in comparison with a reference light source. A higher CRI is generally desirable for visual colour assessment because it allows colours to be represented more accurately.

    For applications such as textile shade matching, garment inspection and product colour comparison, high colour rendering performance is an important consideration. VeriVide lists its D65 lamp with CRI 98.

    3. T8 Tube Design

    The VeriVide D65 fluorescent lamp is available in T8 format.

    The T8 designation refers to the tube diameter/type used by the lamp. The official VeriVide specification lists D65 versions in 600 mm, 1200 mm and 1500 mm lengths, with corresponding 18W, 36W and 58W power ratings.

    Available VeriVide D65 Models

    VeriVide 600D65

    • Length: 600 mm
    • Power: 18W
    • Tube Type: T8
    • CCT: 6500K
    • CRI: 98
    • Product Code: 600D65

    VeriVide 1200D65

    • Length: 1200 mm
    • Power: 36W
    • Tube Type: T8
    • CCT: 6500K
    • CRI: 98
    • Product Code: 1200D65

    VeriVide 1500D65

    • Length: 1500 mm
    • Power: 58W
    • Tube Type: T8
    • CCT: 6500K
    • CRI: 98
    • Product Code: 1500D65

    These three D65 configurations are listed in VeriVide's official lamp specification.

    Application of VeriVide Original D65 Tube light

    The VeriVide D65 Artificial Daylight Tube is suitable for applications where standardized daylight illumination is required for visual inspection and colour assessment.

    Textile Industry

    The textile and garment industry is one of the major applications for D65 artificial daylight.

    Textile manufacturers, dyeing factories, garment factories, buying houses and quality-control laboratories need to compare fabric samples, dyed yarns, garments and colour standards under controlled lighting.

    Typical applications include:

    • Fabric shade matching
    • Garment colour inspection
    • Yarn colour comparison
    • Dyed fabric inspection
    • Colour approval
    • Lab dip assessment
    • Bulk production shade checking
    • Colour standard comparison
    • Final garment inspection
    • Buyer sample approval

    Using standardized lighting helps different departments and organizations evaluate the same colour under similar viewing conditions.

    Colour Matching

    Colour matching requires more than simply checking whether two samples look similar.

    A sample may appear acceptable under one light source but show a noticeable difference under another light source. This is particularly important in textile, garment and manufacturing applications.

    VeriVide Original D65 Tube light provides a standardized daylight reference for visual assessment.

    For example, a laboratory may compare:

    Approved Colour Standard → Lab Dip → Bulk Fabric

    All three samples can be evaluated under the same D65 lighting condition.

    This provides a more controlled environment for colour decisions.

    Metamerism Assessment

    Metamerism occurs when two colours appear to match under one lighting condition but appear different under another.

    This can create serious problems in textile and product manufacturing.

    For example:

    • Fabric A may match the approved standard under one light.
    • Under daylight, Fabric A may appear different.
    • Under store lighting, the difference may become even more noticeable.

    VeriVide Original D65 Tube light recommends standardized viewing environments because changing illumination can reveal colour differences that may not be visible under another light source.

    VeriVide Original D65 Tube light light source can therefore form an important part of a professional colour assessment system.

    Use in VeriVide Colour Assessment Cabinets

    VeriVide colour assessment cabinets can be configured with standardized light sources including D65 and D50, along with other illuminants depending on the application.

    The D65 tube is particularly useful where daylight-standard colour assessment is required.

    A typical colour assessment cabinet may contain multiple light sources to allow the operator to check colour behaviour under different lighting conditions.

    This can help identify:

    • Colour inconsistency
    • Metamerism
    • Shade variation
    • Fluorescence-related appearance
    • Differences between product and colour standard

    Use in Textile Testing Laboratories

    Textile testing laboratories require controlled and repeatable environmental conditions for visual assessments.

    VeriVide Original D65 Tube light can be used as part of an appropriate viewing cabinet or visual inspection system for:

    • Colour fastness assessment
    • Shade evaluation
    • Fabric colour grading
    • Garment inspection
    • Pilling assessment
    • Appearance assessment
    • Colour matching
    • Standard comparison

    VeriVide Original D65 Tube light own textile testing equipment uses CIE D65 artificial daylight for standardized visual assessment applications. For example, its Pilling Assessment Viewer uses VeriVide CIE D65 Artificial Daylight for assessment under relevant EN ISO 12945 methods.

    Colour Fastness Assessment

    Visual evaluation is also important in textile colour fastness testing.

    A controlled D65 light source can provide standardized viewing conditions when comparing test specimens with reference standards.

    VeriVide's Colour Fastness Cabinet, for example, uses D65 Artificial Daylight at 6500K as one of its standardized light sources, together with UV black light for relevant assessment applications.

    Benefits for Garment Manufacturers

    For garment manufacturers, colour consistency is essential from sampling through bulk production.

    The VeriVide Original D65 Tube light can help establish a controlled visual environment for:

    Sampling

    Compare the original colour standard with lab dips and development samples.

    Production

    Check whether bulk production remains within the approved colour range.

    Quality Control

    Evaluate finished garments before shipment.

    Buyer Inspection

    Provide a standardized environment for colour approval.

    Final Inspection

    Reduce the possibility of colour disputes caused by inconsistent lighting.

    Benefits for Textile Dyeing Factories

    In dyeing factories, colour decisions are often made at several stages.

    These may include:

    1. Recipe development
    2. Lab dip preparation
    3. Lab dip approval
    4. Bulk dyeing
    5. Shade checking
    6. Finishing
    7. Final inspection
    8. Shipment inspection

    Using a standardized VeriVide Original D65 Tube light source can help maintain consistent visual conditions across these stages.

    This is especially useful when several people are involved in colour evaluation.

    Standards and Compliance

    The VeriVide Original D65 Tube light is specified by VeriVide for use as a D65 artificial daylight source.

    According to VeriVide's published lamp information, the D65 lamp has a 6500K correlated colour temperature, is within the tolerances prescribed in BS 950 Part 1, and has high conformance to relevant CIE specifications for accurate colour matching. VeriVide's current documentation also references ISO/CIE 23603 / CIE S 012/E for D65 applications.

    Depending on the particular testing method, viewing cabinet and industry application, additional standards may apply. Users should always verify the exact lighting requirements specified by their applicable test method, buyer or customer.

    Why Standardized Lighting Matters

    Natural daylight is not constant.

    It can change due to:

    • Time of day
    • Weather
    • Season
    • Geographic location
    • Atmospheric conditions
    • Window orientation
    • Surrounding environment

    Because of these factors, a colour sample may look different at different times or locations.

    VeriVide notes that these natural-light variations can cause colour consistency problems throughout a supply chain. Standardized artificial light provides a controlled alternative.

    For international textile and garment supply chains, this is especially important because a buyer, manufacturer and supplier may be located in different countries.

    VeriVide D65 vs Ordinary Daylight

    Feature VeriVide D65 Ordinary Natural Daylight
    Standardized Yes No
    Colour Temperature 6500K Variable
    Controlled Environment Yes No
    Colour Assessment Professional Variable
    Repeatability High Low
    Weather Dependent No Yes
    Time-of-Day Dependent No Yes
    Suitable for Standardized Colour Evaluation Yes Not recommended as sole reference

    The purpose of VeriVide D65 is therefore to provide a more consistent and controlled lighting condition than relying on natural daylight alone.

    VeriVide Original D65 Tube Replacement

    For existing VeriVide viewing cabinets and compatible systems, correct lamp replacement is important.

    VeriVide recommends replacing lamps after their specified service life because the spectral output of lamps can change with usage. The manufacturer notes a 2000-hour life-cycle recommendation for its lamps and recommends replacement after 2000 hours or one year of use to maintain reliable colour assessment conditions.

    When replacing a lamp, users should verify:

    • Correct VeriVide D65 specification
    • Correct tube length
    • Correct wattage
    • Correct tube type
    • Compatibility with the existing equipment
    • Applicable voltage and ballast requirements

    How to Select the Correct D65 Tube

    Before ordering a replacement VeriVide D65 tube, check the existing lamp.

    Step 1 – Check the Length

    Measure the existing tube.

    Available VeriVide D65 lengths include:

    • 600 mm
    • 1200 mm
    • 1500 mm

    Step 2 – Check Wattage

    The corresponding official specifications are:

    • 600 mm – 18W
    • 1200 mm – 36W
    • 1500 mm – 58W

    Step 3 – Check Tube Type

    The listed D65 versions are T8.

    Step 4 – Check Equipment Compatibility

    If the lamp is being installed into a VeriVide viewing cabinet or colour assessment equipment, confirm the equipment model before ordering.

    Step 5 – Confirm Original Product Requirement

    For professional colour assessment, use the correct standardized lamp rather than an ordinary commercial daylight tube.

    Suitable Industries

    The VeriVide Original D65 Tube Light can be relevant to many industries, including:

    Textile & Garments

    Fabric, yarn, garment and shade evaluation.

    Dyeing & Finishing

    Lab dip and bulk shade comparison.

    Printing

    Visual colour checking of printed materials.

    Packaging

    Colour consistency of packaging materials.

    Plastics

    Colour and appearance inspection.

    Paint & Coating

    Visual colour comparison.

    Automotive

    Component colour and appearance assessment.

    Furniture

    Fabric, leather, plastic and surface colour evaluation.

    Graphic Arts

    Visual inspection under controlled lighting where the relevant D65 specification is applicable.

    Key Features at a Glance

    VeriVide Original D65 Tube light offers:

    • Original VeriVide D65 light source
    • 6500K correlated colour temperature
    • CRI 98
    • T8 tube format
    • Multiple length options
    • Standardized artificial daylight
    • Professional colour assessment
    • Consistent visual inspection conditions
    • Suitable for textile and garment industries
    • Suitable for colour matching
    • Useful for metamerism assessment
    • Suitable for compatible VeriVide equipment
    • Professional replacement lamp solution

    Frequently Asked Questions

    What is a VeriVide D65 Tube Light?

    VeriVide D65 is a standardized artificial daylight lamp designed to provide controlled D65 illumination for professional visual colour assessment.

    What is the colour temperature of VeriVide D65?

    The VeriVide D65 Artificial Daylight Tube has a correlated colour temperature of 6500K.

    What is the CRI of VeriVide Original D65 Tube light ?

    The official VeriVide specification lists the D65 lamp with CRI 98.

    What lengths are available?

    The official specification lists 600 mm, 1200 mm and 1500 mm versions.

    What are the wattages?

    The listed versions are 18W, 36W and 58W, corresponding respectively to 600 mm, 1200 mm and 1500 mm lengths.

    Is VeriVide Original D65 Tube light suitable for textile colour matching?

    Yes. D65 standardized daylight is widely used in controlled visual colour assessment, including textile and garment applications. VeriVide specifically describes D65 as being specified for applications where colour consistency and quality need to be maintained.

    Why should I use Original VeriVide D65 instead of an ordinary 6500K tube?

    A tube being labelled “6500K” does not by itself make it a standardized VeriVide D65 colour-assessment lamp. Professional colour assessment depends on the characteristics of the light source, not only its nominal colour temperature. VeriVide's D65 lamp is designed and specified as an artificial daylight source for standardized colour assessment.

    When should the D65 lamp be replaced?

    VeriVide recommends replacement after approximately 2000 hours or one year of use to maintain reliable assessment conditions.

    Can this lamp be used in any T8 fixture?

    Not necessarily. Compatibility with the fixture, ballast, electrical requirements and intended application should be checked before installation.

    Product Applications

    VeriVide D65 Artificial Daylight Tube Light is suitable for:

    • Textile Testing Laboratory
    • Garment Factory
    • Dyeing Factory
    • Fabric Inspection
    • Colour Matching Laboratory
    • Quality Control Laboratory
    • Buying House
    • Apparel Industry
    • Printing Industry
    • Packaging Industry
    • Plastic Industry
    • Paint Industry
    • Product Inspection
    • Colour Assessment Cabinet
    • Viewing Cabinet
    • Visual Inspection System

    Why Buy VeriVide D65 from MAAM TEX?

    MAAM TEX supplies textile testing instruments, laboratory equipment, colour assessment products and related consumables for textile and garment industries.

    For customers requiring VeriVide Original D65 Artificial Daylight Tube Light, we can provide the appropriate specification based on your existing equipment, required tube length and application.

    Before placing an order, please provide:

    1. Required quantity
    2. Tube length – 600 / 1200 / 1500 mm
    3. Existing machine/cabinet model, if applicable
    4. Required wattage
    5. Photo of the existing tube, if available

    This information helps ensure that the correct replacement lamp is supplied.

    Ordering Information

    Product:

    VeriVide Original D65 Tube Light – Artificial Daylight

    Available Options:

    600D65
    600 mm / 18W / T8 / 6500K / CRI 98

    1200D65
    1200 mm / 36W / T8 / 6500K / CRI 98

    1500D65
    1500 mm / 58W / T8 / 6500K / CRI 98

     current stock Available

    Conclusion

    The VeriVide Original D65 Tube Light – Artificial Daylight is a professional standardized daylight source for controlled visual colour assessment. With 6500K colour temperature and CRI 98, it is designed for applications where colour consistency, repeatability and accurate visual evaluation are important.

    For textile and garment manufacturers, dyeing factories, testing laboratories, buying houses and quality-control departments, a standardized D65 lighting environment can help create more consistent colour evaluation conditions and reduce problems associated with variable natural daylight.

    For compatible VeriVide equipment and professional colour assessment applications, selecting the correct Original VeriVide D65 lamp is important for maintaining the intended lighting conditions of the system.

    Add to cart
    Quick view
    Fully Automatic Radio Frequency Dryer
    Fully Automatic Radio Frequency Dryer

    Fully Automatic Radio Frequency Dryer

    $0.00
    Fully Automatic Radio Frequency Dryer
    Fully Automatic Radio Frequency Dryer

    Fully Automatic Radio Frequency Dryer

      A Fully Automatic Radio Frequency (RF) Dryer is an advanced drying machine that uses radio frequency waves (similar to microwaves but at lower frequency) to dry materials like textiles, paper, wood, and food products. It delivers uniform and rapid moisture removal from within the material, rather than just the surface.   Purpose of Fully Automatic Radio Frequency Dryer: To dry moisture-sensitive materials quickly and evenly using electromagnetic energy, especially where conventional drying is slow or inconsistent.   How It Works: RF waves penetrate deep into the material. Moisture molecules absorb RF energy, generating heat internally. This causes water to evaporate from the inside out. Built-in sensors and controls automate and optimize the process.     Applications of Fully Automatic Radio Frequency Dryer: Textile drying (especially for fabrics with high GSM or special finishes) Paper and nonwoven industries Wood drying Food processing (e.g., pasta, fruits)   Benefits of Fully Automatic Radio Frequency Dryer: Fast Drying Time - RF energy dries materials from the inside out, significantly reducing drying time. Uniform Drying - Prevents surface overheating or under-drying issues common with conventional dryers. Energy Efficient - Targets moisture directly, using less energy compared to thermal dryers.   Improves Product Quality - Reduces shrinkage, deformation, and color fading, especially in textiles. Fully Automatic Operation - Programmable controls minimize manual handling and ensure consistency. Safe for Delicate Materials - Ideal for sensitive or high-value products that can't withstand high surface heat. Reduced Footprint - Compact, vertical designs save floor space in industrial setups.     Features of Fully Automatic Radio Frequency Dryer: Touchscreen Control Panel- For setting drying time, temperature, and moisture target. Auto Load/Unload System - Increases productivity with minimal labor. Moisture Sensors - Monitor and control drying to prevent over-drying. RF Power Generator - High-efficiency RF unit for stable energy output.   Cooling System Built-in cooling for temperature-sensitive materials post-drying. Safety Interlocks - Automatic shutoff if overheating or door open detected.   How to Use Fully Automatic Radio Frequency Dryer: Prepare the Material - Ensure the fabric or material is clean and evenly spread or stacked as required. Power On the Machine - Switch on the main power and wait for the system to initialize. Load the Material - Use the conveyor or auto-loader to place material inside the drying chamber.   Set Drying Parameters of Fully Automatic Radio Frequency Dryer - On the touchscreen panel, input: - Drying time - Target moisture level - RF power level - Temperature limits (if applicable)   Start the Drying Cycle - Press the start button. The RF system activates and begins drying internally. Monitor Process (Auto/Manual) - Most machines auto-adjust based on moisture sensor feedback. - You can monitor real-time temperature and drying progress on the display.   Cooling (Optional) - If enabled, the cooling cycle will activate after drying to stabilize the material. Unload Material - Use the conveyor or manual method to remove the dried product safely.   Shutdown - Turn off the system and clean the chamber if required. Maintenance Tips for Fully Automatic RF Dryer: Daily Cleaning   - Wipe down the drying chamber and conveyor to remove lint, dust, and moisture residue. Check RF Generator   - Inspect cables, connectors, and ventilation; clean RF components weekly.   Inspect Moisture Sensors - Clean sensor surfaces regularly for accurate readings. Lubricate Moving Parts - Grease conveyor rollers and motor bearings as per the maintenance schedule. Filter Maintenance - Clean or replace air filters monthly to ensure proper ventilation and cooling. Software Updates - Keep the control system firmware updated if your model supports it. Electrical Checks - Inspect wiring, switches, and interlocks for wear or overheating signs.     Safety Precautions:  Use Trained Operators Only - Ensure only qualified personnel operate and maintain the machine. Avoid Overloading - Exceeding material load limits can reduce efficiency and risk damage. Keep Away from RF Area during Operation - Follow RF safety guidelines—do not tamper with shielding or interlocks. Emergency Stop - Know the location and function of the emergency stop switch. Allow Cooling Before Maintenance Let the system cool completely before touching internal components.   Daily Maintenance Checklist – Fully Automatic RF Dryer: [ ] Wipe inside drying chamber [ ] Remove lint/debris from conveyor [ ] Check for unusual noise or vibration [ ] Verify sensor readings on display [ ] Ensure air vents are unobstructed [ ] Inspect emergency stop function   Weekly Maintenance Checklist: [ ] Clean moisture sensors with soft cloth [ ] Inspect RF generator cables and connections [ ] Check conveyor belt tension and alignment [ ] Lubricate moving mechanical parts [ ] Test auto-stop and safety interlocks [ ] Review system logs (if digital system is used)     Monthly Maintenance Checklist: [ ] Clean or replace air and dust filters [ ] Inspect electrical wiring and panel for wear [ ] Tighten loose bolts, screws, or fasteners [ ] Calibrate moisture sensors if needed [ ] Verify RF power output levels [ ] Back up control panel settings and software (if applicable)
    Fully Automatic Radio Frequency Dryer

    Fully Automatic Radio Frequency Dryer


    Add to cart
    Quick view
    Oscillation Type Water Bath Dyeing Machine
    Oscillation Type Water Bath Dyeing Machine

    Oscillation type water bath Dyeing Machine

    ,
    $0.00
    Oscillation Type Water Bath Dyeing Machine
    Oscillation Type Water Bath Dyeing Machine

    water bath/Shaker bath Dyeing machine

    An Oscillation Type Water Bath Dyeing Machine is a laboratory apparatus designed for dyeing and washing textile samples under controlled temperature conditions. It combines a heated water bath with an oscillating mechanism to ensure uniform dye penetration and consistent coloration across fabric or yarn samples.   Key Features of Oscillation Type Water Bath Dyeing Machine - Oscillating Mechanism: Provides back-and-forth movement to agitate the dye solution, ensuring even contact between the dye and the textile sample.- Multiple Beaker Capacity: Typically accommodates 12 to 24 beakers, allowing simultaneous processing of multiple samples under identical or varied conditions.   - Digital Temperature Control: Maintains precise temperature settings, usually up to 99°C, suitable for various dyeing processes including atmospheric dyeing, scouring, and bleaching.- Adjustable Oscillation Speed: Offers variable speed settings, commonly ranging from 50 to 200 cycles per minute, to accommodate different fabric types and dyeing requirements. - Programmable Settings: Advanced models come with programmable controllers, allowing users to set and save multiple dyeing protocols for repeatability and efficiency. Durable Construction: Constructed with high-quality stainless steel (e.g., SUS304), ensuring resistance to corrosion and longevity even under rigorous laboratory conditions.   ✅ Benefits of Oscillation Type Water Bath Dyeing Machine - Uniform Dyeing Results: The oscillation mechanism ensures consistent dye penetration, reducing the risk of uneven coloration and enhancing the reproducibility of results.- Efficiency in Sample Processing: The ability to process multiple samples simultaneously accelerates laboratory workflows and facilitates comparative studies.   - Versatility: Suitable for a range of applications including dyeing, washing, scouring, bleaching, and fastness testing across various textile materials.- Energy and Resource Conservation: Designed for low liquor ratios (e.g., 1:5 to 1:20), these machines minimize water and chemical usage, promoting sustainable laboratory practices.   - Enhanced Safety and Cleanliness: Enclosed beaker systems reduce the risk of spills and exposure to chemicals, ensuring a safer laboratory environment.   Typical Applications of Oscillation Type Water Bath Dyeing Machine - Textile Research and Development: Ideal for developing and testing new dye formulations and processes on a small scale before scaling up to production levels. Quality Control: Used in quality assurance laboratories to assess color fastness, dye uptake, and other critical parameters of textile products.- Educational Purposes: Serves as a practical tool in academic settings for teaching dyeing principles and techniques. In summary, the Oscillation Type Water Bath Dyeing Machine is an essential tool in textile laboratories, offering precise control over dyeing parameters, improving efficiency, and ensuring high-quality, reproducible results across various textile materials.   Features of Oscillation Type Water Bath Dyeing Machine:
    1. Oscillating Mechanism - Provides back-and-forth movement of beakers for uniform dye penetration and sample agitation.
    2. Multiple Beaker Capacity - Supports dyeing of 12–24 samples simultaneously, ideal for comparative lab testing.

    1. Digital Temperature Control - Maintains precise water bath temperature (typically up to 99°C), essential for consistent dyeing.
    2. Variable Oscillation Speed - Adjustable speed settings (e.g., 50–200 cycles/min) to suit different materials and processes.

    1. Programmable Settings - Allows setting of temperature, time, and speed for repeatable and automated dyeing cycles.
    2. Stainless Steel Construction - Corrosion-resistant frame and bath for durability in chemical environments.

    1. Beaker Safety Holders - Secure placement of beakers to prevent spills and maintain consistent treatment.
    2. Compact Design - Lab-friendly size for easy integration into research and quality control spaces.
    3. Low Liquor Ratio Operation - Efficient dyeing using minimal dye bath volume (e.g., 1:5 to 1:20), reducing chemical and water use.
    4. Quiet and Stable Performance
    Engineered for smooth, vibration-free operation in laboratory conditions.     Oscillation Type Dyeing Machine Brand: DUNLIN Model:DL-D24 Origin: China Pot Capacity:24 Pot , 250ml SS Beaker Heating Mode: Electric heating Heating Medium: Water/ glycerin Heating Power: 3 Kw Temperature Range: RT- 99℃/250℃ Liquor Ratio: 1:5-:20 Thermostat Tiime:0~99min Oscillation: Speed:50-200rpm Oscillation Range: 40±3mm Power supply: 1∮AC 220V 50/60HZ Dimensions (LxWxH): 880×420×330mm Oscillation Type Dyeing Machine Dunlin price in Bangladesh Oscillation Type Dyeing Machine Dunlin in textile Textile testing equipment in Bangladesh Textile testing equipment in Dhaka Textile testing equipment in Uttara MAAM tex Oscillation Type Dyeing Machine Dunlin price in Bangladesh
    Oscillation Type Water Bath Dyeing Machine

    water bath/Shaker bath Dyeing machine

    Oscillation Type Dyeing Machine
    Add to cart
    Quick view
